ATEM Sw Control Event

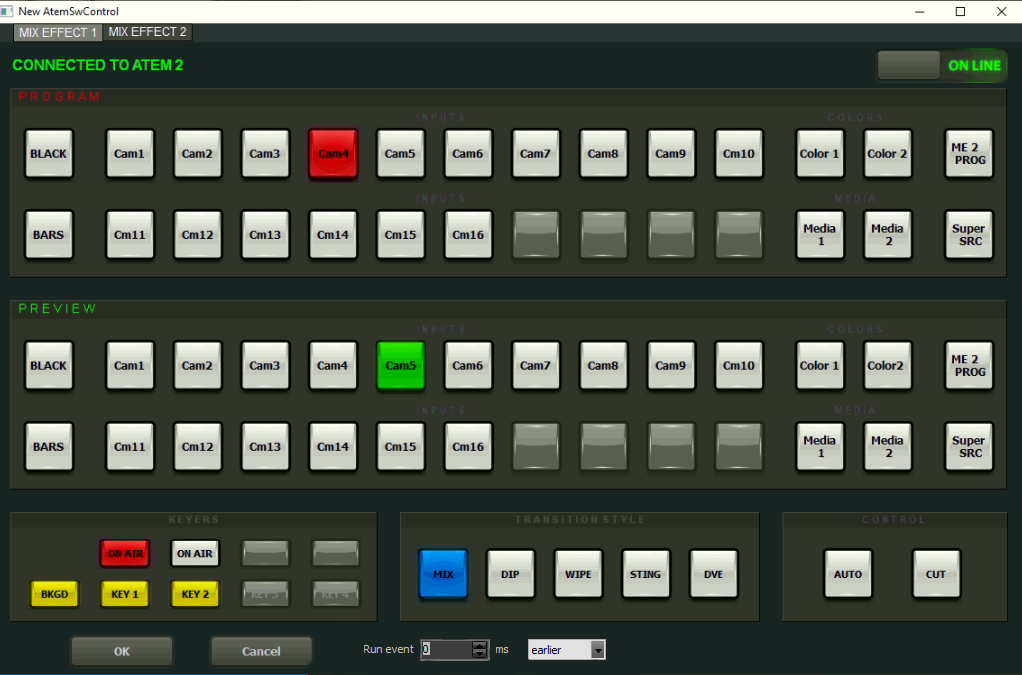

This event may be used when Atem Switcher is in use. When you select it, you will be able to see the dialog, shown above.





WARNING: To use the ATEM Switcher Software Control plug-in, ATEM BlackMagic Software should be installed. Keep in mind that it will replace your current BMD Driver!



For more details please check the Atem Switcher manuals available on BlackMagic design site.

Connected device - points the state of the connected device.



Mode Offline or Online

Program - Master program bus select buttons are used to hot switch background sources to the program output.

Inputs – input buttons match the number of external switcher inputs.

Black – color black source internally generated by the switcher.

Bars – color bars sourse internally generated by the switcher.

Color 1 and Color 2 – colour sources internally generated by the switcher.

Media 1 and Media 2 – Internal media players that display stills ot clips stored in the switcher.

ME2 Prog - This button allows Mix Effects 2 setup to be instantly brought to air or previewed.

SuperSource - (Picture in Picture or PIP) will allow you to arrange multiple sources on the monitor at one time.



Preview - select a background source on the preview output.

Inputs – input buttons match the number of external switcher inputs.

Black – color black source internally generated by the switcher.

Bars – color bars sourse internally generated by the switcher.

Color 1 and Color 2 buttons – colour sources internally generated by the switcher.

Media 1 and Media 2 buttons – Internal media players that display stills ot clips stored in the switcher.

ME2 Prog - This button allows Mix Effects 2 setup to be instantly brought to air or previewed.

SuperSource - (Picture in Picture or PIP) will allow you to arrange multiple sources on the monitor at one time.



Keyers

The BKGD, Key 1, Key 2, Key 3 and Key 4 buttons are used to select the elements which will transition on-air or off-air with the next transition.

On Air – indicates which of the keys are currently on-ar and also can be used to immediately cut a key on-or Off-Air.



Transition style

Transition style buttons allow the operator to select oe of five types of transitions: mix, dip, wipe, DVE and stinger.



Control

The AUTO button will allows the operator to manualy control the transition.

The CUT button performs an immediate transition of the program and preview outputs, overriding the selected transition styles.



You can also set an event offset via the Run event field by entering a value in the ms spin-box and selecting [earlier] or [later] from the drop-down menu.The number you enter in the field is in milliseconds.

 Press OK when ready.
