HTML Table Data Provider

Choosing this plug-in allows you to insert data into X-Pert Graphics object from an *.html file.

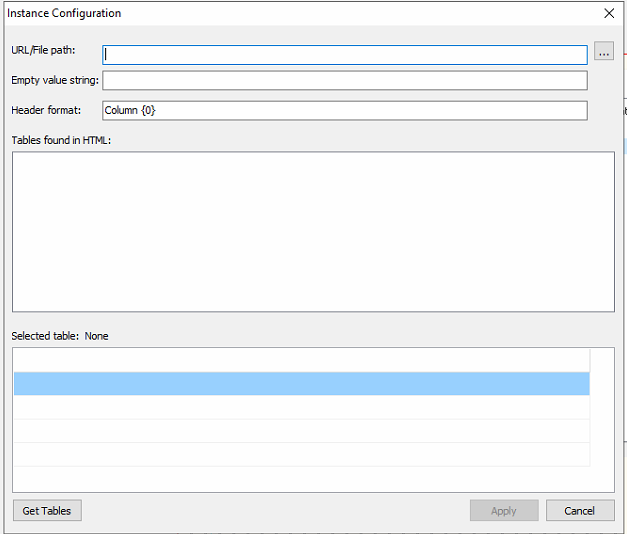

Choose it from the list of available plug-ins and press Add button. The following window will open.

URL/File path – enter here the location of your *.html table

Empty value string – enter here the string, which you want to be visible if there are no data into the table.

Header format – this is the format of the table header. By default, it is “Column {0}”

Into Tables found in HTML area, you will see the list of tables found into the source *.html file. In order to see a table, you have to select a line and press Get Table button in the bottom of the window.

Press Apply button, to accept the settings.

Press Close button, to close the window without saving the changes.
