GPI Task

This task is designed for creating GPI pulses.

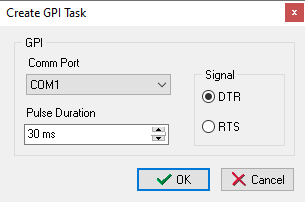

Into the GPI task window, specify the GPI Signal type (RTS or DTR) and to which COM port it should be sent. Specify also the Pulse duration in milliseconds.

Press OK to add this task to the Task Manager list.

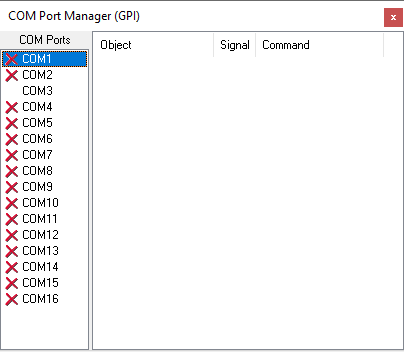

The GPI events window can be started from Project-> Plugins -> GPI manager as well.

In the GPI manager, you can view all GPI events and the objects to which they have been assigned.
