Colors

This option allows users to define the colors, used in the X-Pert Playout playlist for color- coding, as well as for timers.

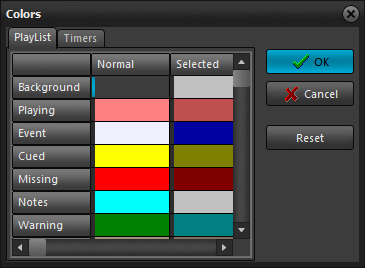

Playlist colors:

Background – playlist background.

Playing – currently played clip.

Event – event rows.

Cued – a clip prepared for playback.

Missing – missing file rows.

Note – note (comment) line.

You can define colors for Normal and for Selected status of each playlist row.

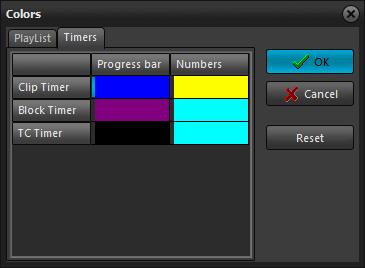

Timer colors:

Clip timer – colors for the progress bar and the letters in the Clip Timer.

Block timer – colors for the progress bar and the letters in the Block Timer.

TC (timecode) timer – colors for the progress bar and letters in the TC Timer.

Clicking on the desired color box enables a combo-box for selecting a color or defining a custom one.



          The Reset button resets the selected field to default colors.

All the screenshots in this User’s Manual are made with default X-Pert Playout colors and all explanations are in accordance to them.
